Automotive repair, Body Shop and Aerospace – Aluminum Dust Extraction and Vacuum Sanding Kits Systems
alt

Point of generation dust control for the recovery of aluminum, magnesium, and other commercial alloys

Tiger-Vac’s Dust Extraction/Vacuum Sanding Kit Systems are ideal for the Automotive and Aerospace industries. We are pleased to present to you the following 2 new product lines:

  • « Wet Mix » immersion bath separators for dust recovery
  • Dust Recovery Systems into an Static Dissipative Collection Bag

These new systems bare the following certifications:

1. Class I & II - Division 1 – Groups D, E, F & G (EPL Db IIIC)

  • CSA Logo Certified
  • ATEX/IECEx Certified


2.
Class II - Division 2 – Groups F & G (EPL Dc IIIB)

  • CSA LogoCertified
  • ATEX/IECEx Certified


3. CSA – ETL – CCC Certified for ordinary areas/locations product standard

These 3rd party certified Vacuum Assisted Dust Extractors/Sanding Kits are static dissipative and conductive and are available with the following characteristics:

  1. Explosion Proof / Dust Ignition Proof – Nationally and Internationally Certified by CSA, NRTL, ATEX Cat. 2 & 3, IECEx EPL Db & Dc
  2. Electrically or pneumatically (air) operated
  3. Portable and equipped with single or dual static dissipative suction hose connector
  4. Power trigger activation on/off for vacuum assist shrouded tools
  5. We carry a large inventory of shrouded sanders, grinder, dustless drill kits with a suction port for maximum dust recovery (view dustless hand tools & accessories)

alt

Downloads:

Click here to see Tiger-Vac's Hazardous Locations Classification Reference sheet

Click here to access more information:

Videos:

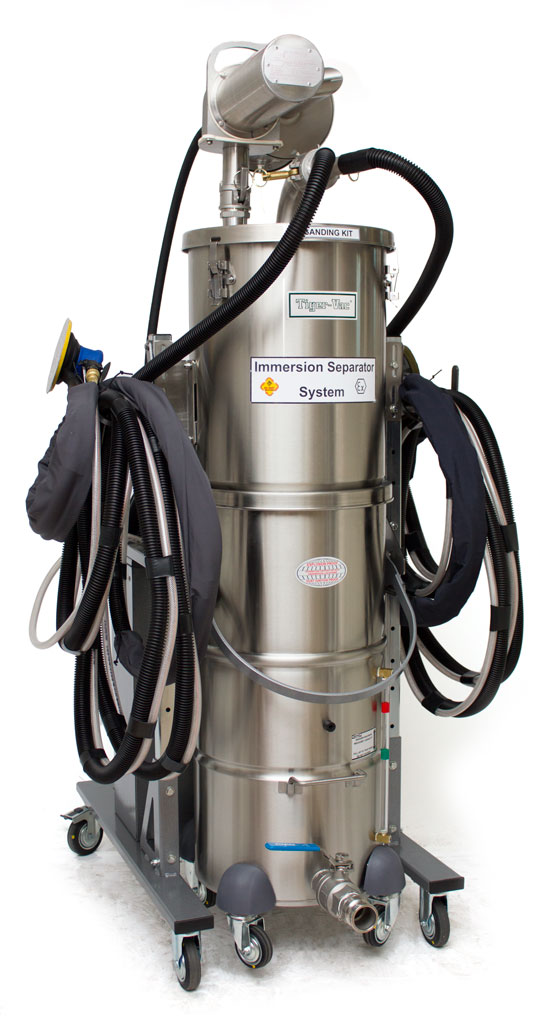

    "Wet Mix" Extraction Immersion Separator

    For the safe recovery of Aluminum, Magnesium and all commercial alloys dusts
    Equipment providing a minimum ingress of protection of IP 6X and classified for dust group IIIC

    Our most
    popular
    sanding kits:

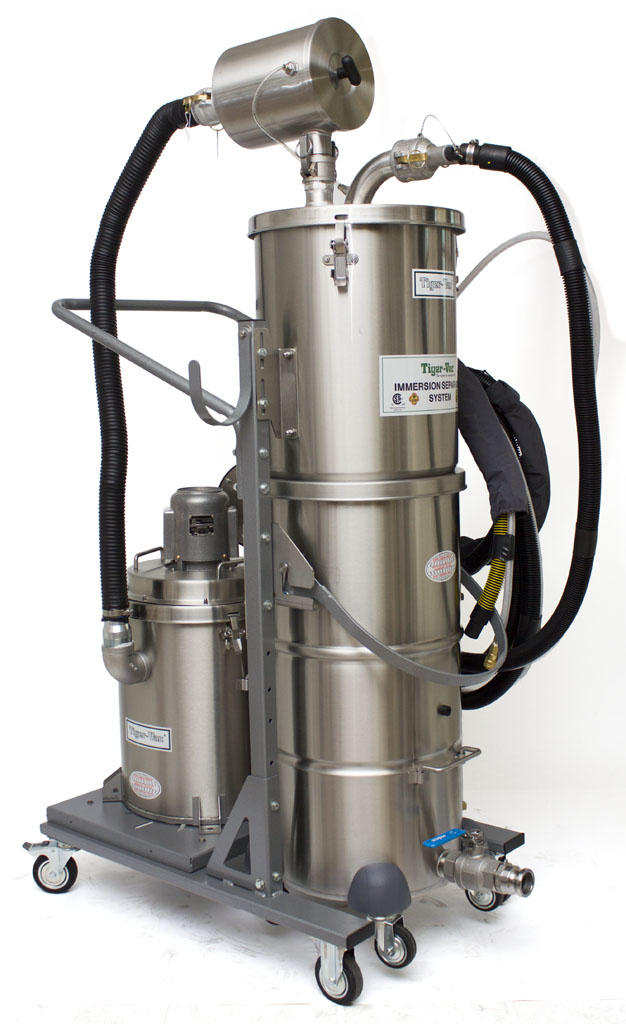

    EXP1-IT (85L) EX (CFE) SK HEPA
    Electrically Operated
    Only meant to be used with water (no oil)
    C-10EX (IT-85L) CFE SK HEPA
    Electrically Operated
    Only meant to be used with water (no oil)
    SS-IT (85L) EX (CFE) SK HEPA WET (WATER) MIX
    Pneumatically (Air) Operated
    Only meant to be used with water (no oil)

    Dust Ignition Protected Dust Extractors/Vacuum Sanding Kit Systems - For use as per NRTL Class II, Division 2, Groups F & G and providing a protection level of IECEx EPL Dc IIIC

    Our most
    popular
    sanding kits:

    ATEX-12 (2+2W) SK HEPA
    Pneumatically (Air) Operated
    C-10EX (2+2W) SK HEPA
    Electrically Operated

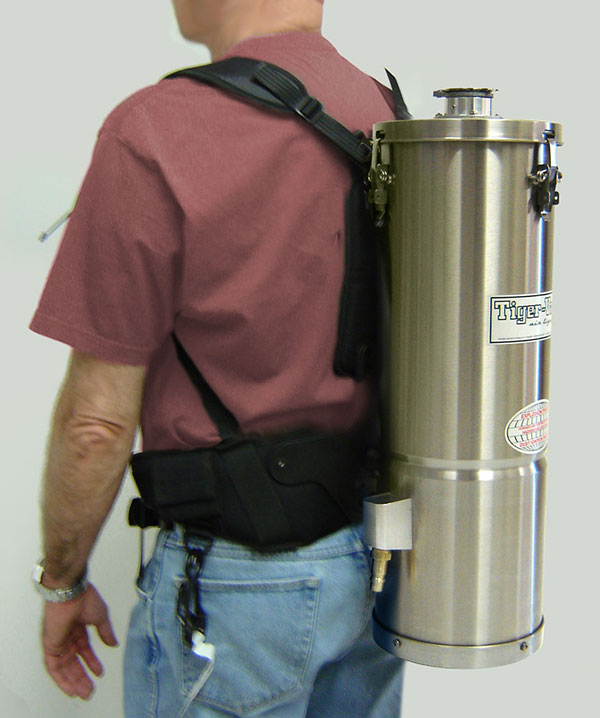

    SANDING KIT SSAT-6L (WM) SK HEPA
    Pneumatically (Air) Operated

    "Wet Mix" Extraction Immersion Separator

    For the safe recovery of Aluminum, Magnesium and all commercial alloys dusts
    Equipment providing a minimum ingress of protection of IP 6X and classified for dust group IIIC

    CD-IT (85L) EX (CFE) SK HEPA
    Electrically Operated
    Div. 1 - Power: 1-2 HP, Single or 3-Phase. Can be used with Mineral Oil or any other neutralizing liquid

    Dust Ignition Protected Dust Extractors/Vacuum Sanding Kit Systems - For use as per NRTL Class II, Division 2, Groups F & G and providing a protection level of IECEx EPL Dc IIIC

    4D-35L EX (DT) MRP (SK) HEPA
    Electrically Operated
    Dual Motors
    C-10EX (DT) MRP (SK) HEPA
    Electrically Operated
    TV-12 SK (4W) HEPA
    Pneumatically (Air) Operated
    TV-12 SK (2+2W) HEPA
    Pneumatically (Air) Operated

    Explosion Proof / Dust Ignition Proof Dust Extractors/Vacuum Sanding Kit Systems - Designed for FOD Requirements - Certified for the recovery of aluminum, magnesium and other commercial alloys:
    • CSA/NRTL Class II, Division 1, Groups E, F & G
    • ATEX Category 2
    • IECEx EPL Db (Zones 21 & 22)

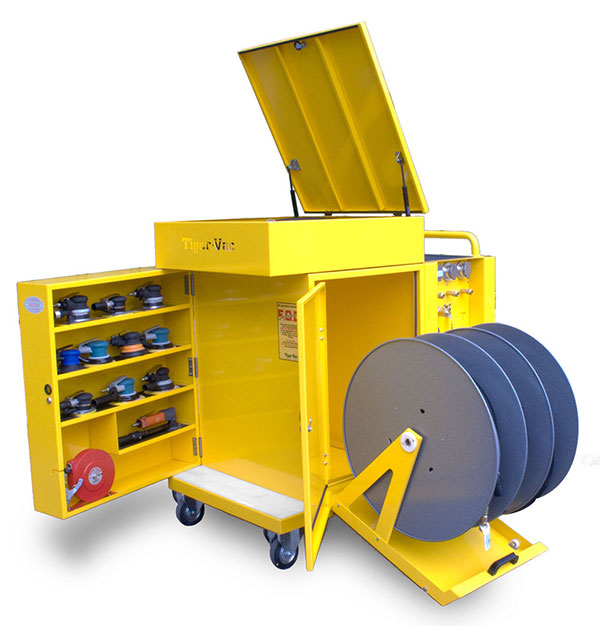

    SSAT-19L SK HEPA
    Pneumatically (Air) Operated

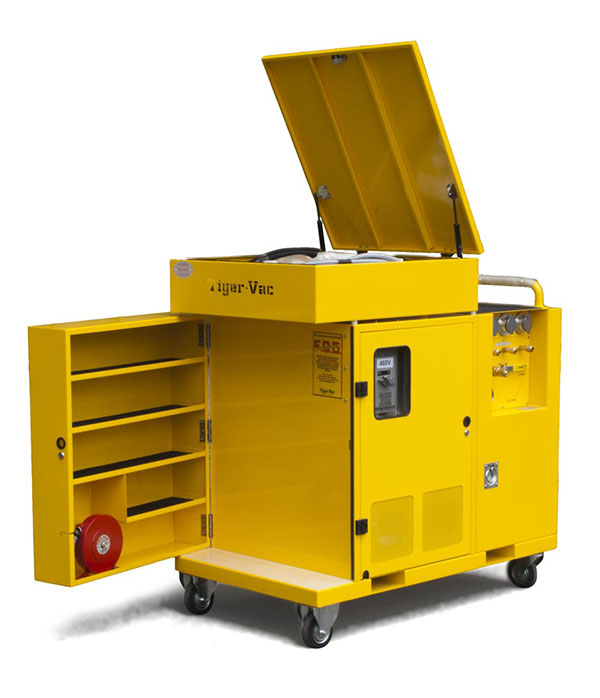

    CD-19L SK HEPA
    Electrically Operated
    Div. 1 - Power: 5 HP

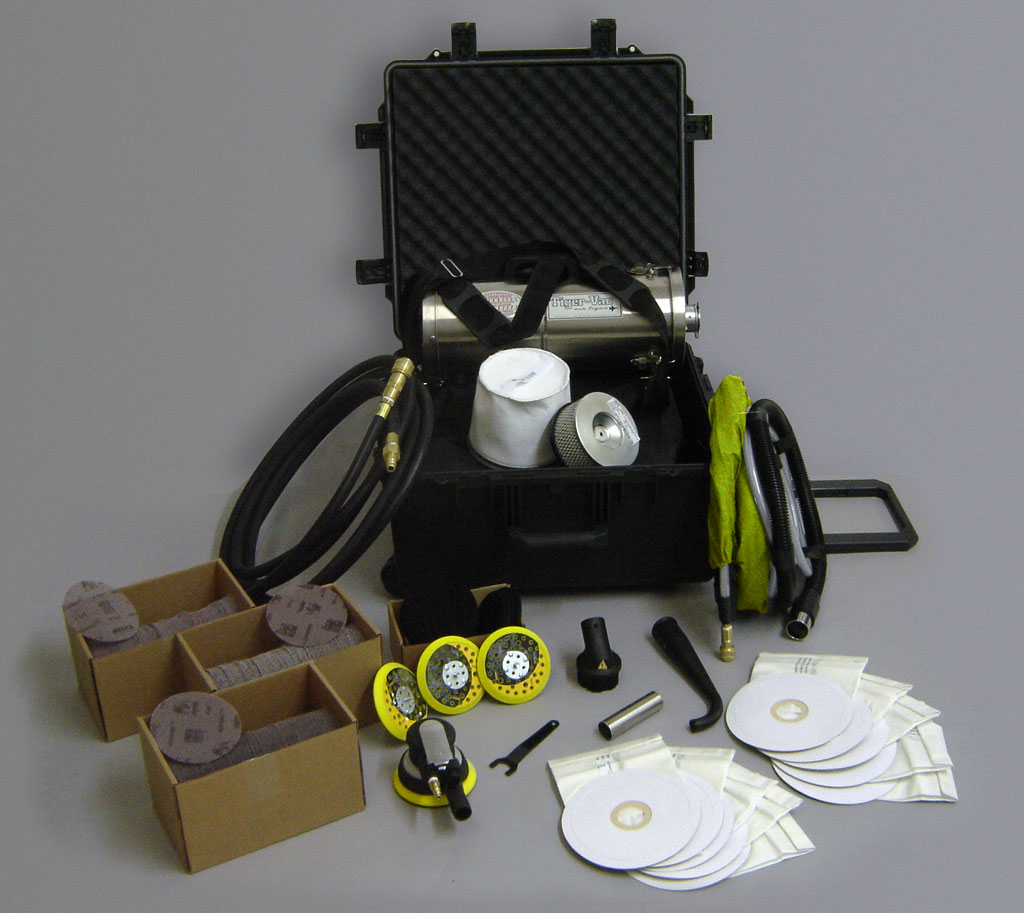

    SANDING KIT SSAT-2L (HH) SK HEPA AIR TIGER
    Pneumatically (Air) Operated

    Explosion Proof / Dust Ignition Proof Dust Extractors/Vacuum Sanding Kit Systems - Certified for the recovery of aluminum, magnesium and other commercial alloys:
    • CSA/NRTL Class II, Division 1, Groups E, F & G
    • ATEX Category 2
    • IECEx EPL Db (Zones 21 & 22)

    SS-10 (DT) SK HEPA
    Pneumatically (Air) Operated
    SS-10 (4W) SK HEPA
    Pneumatically (Air) Operated
    SANDING KIT SSAT-6L (BP) SK HEPA AIR TIGER
    Pneumatically (Air) Operated


    Our equipment are legally certified by independant testing laboratories:



    Motor options

    Voltage

    Power

    Amps

    Required male plug

    Airflow

    Vacuum Pressure

    Motor A (2)


    115 V, 50/60Hz

    2400W

    21 A

    30A **

    220 CFM

    110" H2O

    Motor B (2)

    115 V, 50/60Hz

    2000W

    17 A

    20A **

    200 CFM

    90" H2O

    Motor I (2)

    115 V, 50/60Hz

    1600W

    13.5 A

    15A *

    190 CFM

    80" H2O

    Motor J (2)

    115 V, 50/60Hz

    1700W

    14 A

    20A **

    188 CFM

    84" H2O

    Motor F (2)

    230 V, 50Hz

    2100W

    10 A

    15A

    200 CFM

    83" H2O
