Backpack Models

Electric Models

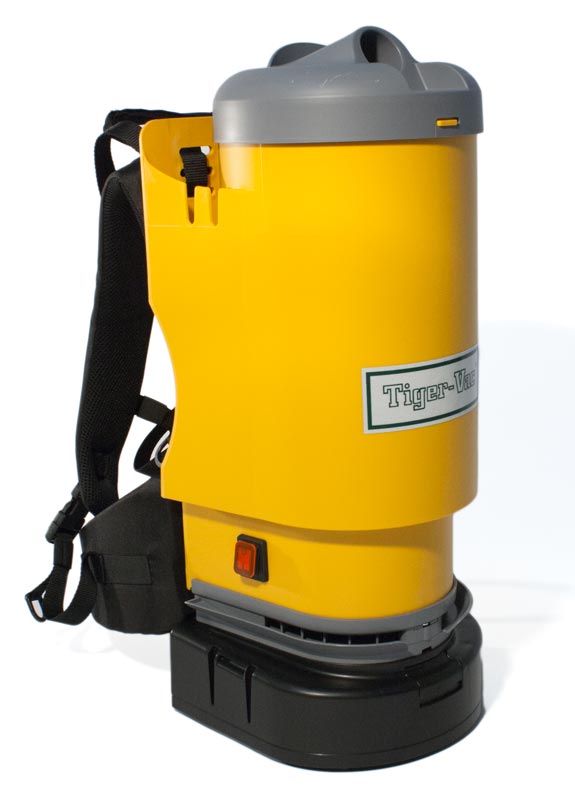

T1-3L (BP) HEPA
Electrically Operated

Applicable requirements:

Standard(s) for Electric Vacuum Cleaning Machines and Blower Cleaners (UL-1017)

HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
3-stage filtration system includes a HEPA Filter H14, Cloth Filter and Disposable Filter Bag
Designed for general cleanup
Lightweight and portable
Single phase thru-flow motor
For dry recovery only
All plastic construction
Recovery capacity of 0.8 gallon (3 liters) in Disposable Filter Bag
Equipped with a backpack harness
Complete tool kit included
Dustless Drill Kit available

MV-1CR (BP) SERIES
Electrically Operated

Applicable requirements:
ANSI/UL 1017
CSA C22.2 No. 243

ULPA Filter - Included with an efficiency of 99.999% on 0.12 micron. Tested: IEST RP-CC001.3. Filtration efficiency of 99.9995% on 0.18 micron. Tested: IEST RP-CC001.3. U15 by MPPS method as per EN 1822.
*Cleanroom compatible with ISO Class 4 (former Class 10). Can be used in the pharmaceutical industry
Static free and ESD safe. EMI/RFI Shielded.
4-stage filtration system includes an ULPA Filter U15, Cloth Filter, Dome Filter and Disposable Filter Bag
Special filter lined with stainless steel is available for the recovery of broken wafers and sharp objects
Designed for general cleanup in contamination controlled environments
Single phase thru-flow motor
For dry recovery only
All stainless steel construction
Recovery capacity of 1.5 gallon (5.7 liters) in Disposable Filter Bag
Equipped with a backpack harness
Complete tool kit included

MV-1CR (CV) SERIES
Electrically Operated

Containment HEPA Filter H14 and ULPA Filtration U15
*Cleanroom compatible. Can be used in the pharmaceutical industry
Static free, RFI shielded and EMI suppression
Dry recovery only
All stainless steel AISI 304 construction
Available in Handheld, Backpack and Golfcart versions
Recovery capacity within the Containment HEPA Filter is 13-40 oz (0.4-1.2 liters)
Complete tool kit included

SSAT-6L (BP) AIR TIGER
Pneumatically (Air) Operated

GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.

II 2 G/D c IIC T6 (85^oC)

HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
*Cleanroom compatible. Can be used in the pharmaceutical industry
Pneumatically (air) operated
For dry recovery only
All stainless steel SAE 304 construction
Lighweight and equipped with a backpack harness
Recovery capacity of 1.5 gallons (6 liters) in optional Disposable Filter Bag
Available with an optional Carrying Case
Equipped with a complete static dissipating tool kit, including suction and air line hoses

AIR TIGER SSAT-6L (BP) SK HEPA
Pneumatically (Air) Operated

GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.

II 2 G/D c IIC T6 (85^oC)

Less than 10 Ohms of resistivity
HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
Designed for point of generation dust control
Pneumatically (air) operated
For dry recovery only
All stainless steel SAE 304 construction
Recovery capacity is 1.5 gallons (5.7 liters) in Disposable Filter Bags
Equipped with a backpack harness this unit is lightweight and ergonomic
Complete system includes a sander, tools, hose, abrasives start-up kit and filters to ensure turn-key operation
Abrasive are available in PSA (sticky), hook and loop (velcro) or screen type. Many different grits are available

Note:

HEPA Filters - efficiency of 99.995% on 0.3 microns - Tested IEST RP-CC001.3 - H14 as per MPPS method EN 1822.
ULPA Filters - efficiency of 99.999% on 0.3 microns - Filtration efficiency of 99.9995% on 0.18 microns - Tested IEST RP-CC001.3 - U15 as per MPPS method EN 1822
Please be advised that all Tiger-Vac HEPA/ULPA Filters are Aerosol tested when assembled, either upstream or downstream, inside of the vacuum cleaners.
All Tiger-Vac HEPA/ULPA Filters are assembled mechanically with 3 bolts and include a specially designed memory gasket in order to prevent any leaks during the life span of the gasket thus insuring the health and safety of the end user.
