Explosion Proof/Dust Ignition Proof Single Phase Industrial Vacuum Cleaners,
Meets the requirments for Class I Group D, Class II Groups E, F & G - From 1 to 2.6 HP

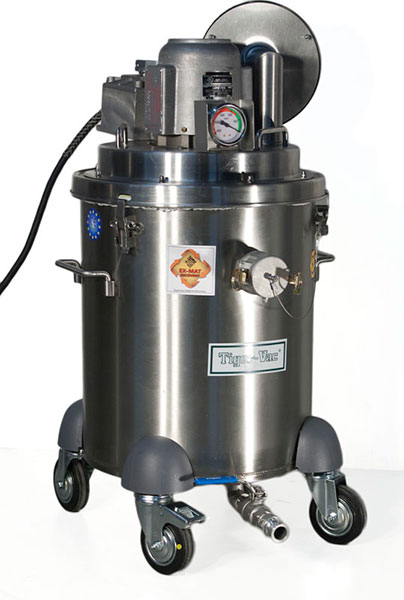

EXP1-10 (4W) BASE MODEL
Electrically Operated
Electrically Operated
Power: 1000 Watts
Certifications
EXP1 models certified for :
Class I, Group D, Division 1 and Class II, Groups E, F and G , Division 1
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
IECEx Certified
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Less than 10 Ohms of resistivity
- HEPA Filter - Optional with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822. Or ULPA Filter - Optional with an efficiency of 99.999% on 0.12 micron. Tested: IEST RP-CC001.3. Filtration efficiency of 99.9995% on 0.18 micron. Tested: IEST RP-CC001.3. U15 by MPPS method as per EN 1822. Or
- *Cleanroom compatible. Can be used in the pharmaceutical industry
- For general cleanup in hazardous locations
- Single phase explosion proof/dust ignition proof motor
- For dry recovery only. Liquid recovery conversion kit optional
- All stainless steel SAE 304 construction (except cart). Stainless steel cart available
- Recovery tank capacity of 10 gallons (38 liters)
- Optional SD* poly liner and clip available for easy and safe disposal of recovered materials
- Based on an SD* 4-wheel dolly
- Complete static dissipating tool kit and suction hose optional
SD* Static Dissipative

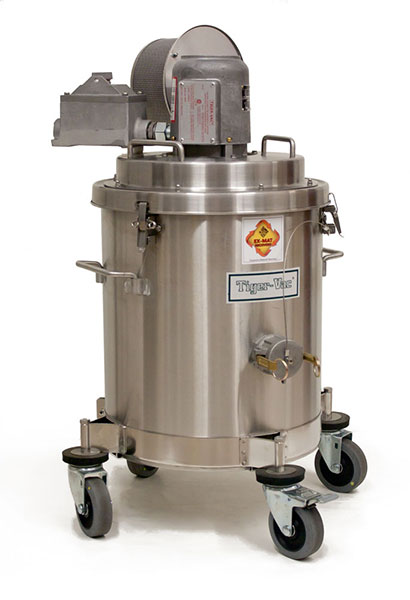

EXP1-10 (4W) (RE) HEPA FOR POTENT POWDER RECOVERY
Electrically Operated
Electrically Operated
Power: 1000 Watts
Certifications
EXP1 models certified for :
Class I, Group D, Division 1 and Class II, Groups E, F and G , Division 1
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
IECEx Certified
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Less than 10 Ohms of resistivity
- HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822. Or ULPA Filter - Optional with an efficiency of 99.999% on 0.12 micron. Tested: IEST RP-CC001.3. Filtration efficiency of 99.9995% on 0.18 micron. Tested: IEST RP-CC001.3. U15 by MPPS method as per EN 1822.
- Designed for the recovery of potent powders in hazardous locations
- Single phase explosion proof/dust ignition proof motor
- For dry recovery only
- All stainless steel SAE 304 construction
- Recovery tank capacity of 6 gallons (23 liters)
- Equipped with a conductive cloth recovery bag and SD* poly liner and clip for easy and safe disposal of recovered materials
- Based on an SD* 4-wheel dolly for easy manoeuverability
- Complete static dissipating tool kit and suction hose included
SD* Static Dissipative

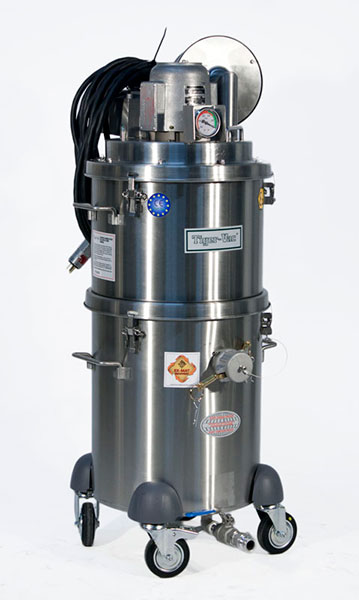

EXP1-10 (4W) RE HEPA (MRAC)
Electrically Operated
Electrically Operated
Power: 1000 Watts
Certifications
EXP1 models certified for :
Class I, Group D, Division 1 and Class II, Groups E, F and G , Division 1
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
IECEx Certified
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Less than 10 Ohms of resistivity
- HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822. Or ULPA Filter - Optional with an efficiency of 99.999% on 0.12 micron. Tested: IEST RP-CC001.3. Filtration efficiency of 99.9995% on 0.18 micron. Tested: IEST RP-CC001.3. U15 by MPPS method as per EN 1822.
- For general cleanup in hazardous locations
- Single phase explosion proof/dust ignition proof motor
- Equipped with a Middle Ring with Activated Carbon Cartridge for the adsorption of fumes and vapors
- For wet and dry recovery
- All stainless steel SAE 304 construction
- Recovery tank capacity of 7.5 gallons (28.5 liters) - wet and 6 gallons (23 liters) - dry
- Optional SD* polyliner and clip available for easy and safe disposal of recovered materials
- Based on an SD* 4-wheel dolly for easy manoeuverability
- Complete static dissipating tool kit and suction hose included
SD* Static Dissipative

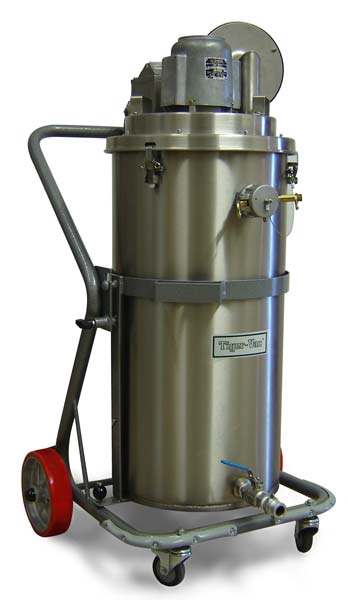

EXP1-10 TO 55 RE SERIES
Electrically Operated
Electrically Operated
Power: 1000 Watts
Certifications
EXP1 models certified for :
Class I, Group D, Division 1 and Class II, Groups E, F and G , Division 1
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
IECEx Certified
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Less than 10 Ohms of resistivity
- HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822. Or ULPA Filter - Optional with an efficiency of 99.999% on 0.12 micron. Tested: IEST RP-CC001.3. Filtration efficiency of 99.9995% on 0.18 micron. Tested: IEST RP-CC001.3. U15 by MPPS method as per EN 1822.
- *Cleanroom compatible. Can be used in the pharmaceutical industry
- For general cleanup in hazardous locations
- Single phase explosion proof/dust ignition proof motor
- For wet and dry recovery
- All stainless steel SAE 304 construction (except cart). Stainless steel cart available
- Recovery tank capacity of 10 - 55 gallons (38 - 209 liters)
- Optional polyliner and clip available for easy and safe disposal of recovered materials
- Based on an SD* 4-wheel dolly or on an SD* 4-wheel tilting cart (TC) to allow for easy emptying of recovered materials
- Complete static dissipating tool kit and suction hose included
SD* Static Dissipative

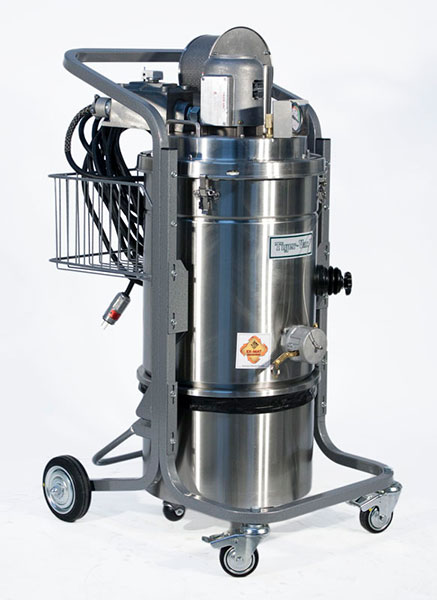

EXP1-20L (DT) RE HEPA (MFS)
Electrically Operated
Electrically Operated
Power: 1000 Watts
Certifications
EXP1 models certified for :
Class I, Group D, Division 1 and Class II, Groups E, F and G , Division 1
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
IECEx Certified
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Less than 10 Ohms of resistivity
- HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
- *Cleanroom compatible. Can be used in the pharmaceutical industry with optional stainless steel cart
- Designed for applications where finely pulverized dust is to be recovered
- Single phase explosion proof/dust ignition proof motor
- Available with Manual Filter Shaker (MFS) system
- For dry recovery only
- All stainless steel SAE 304 construction (except cart). Stainless steel cart available
- Detachable recovery tank (DT). Recovery capacity of 6.25 gallons (25 liters)
- Equipped with an SD* polyliner and clip for easy and safe disposal of recovered materials
- Equipped with an SD* 4-wheel cart and tool basket
- Complete static dissipating tool kit and suction hose included
SD* Static Disspative

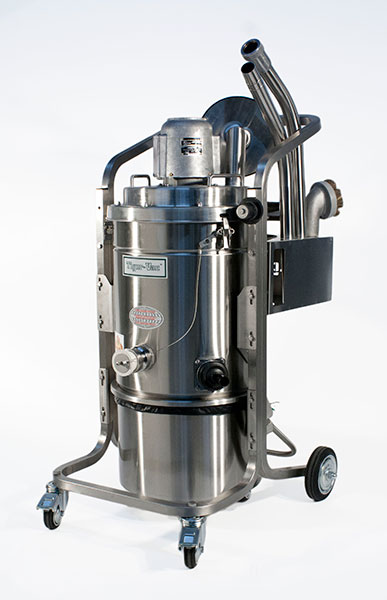

EXP1-35L (DT) RE HEPA (MFS)
Electrically Operated
Electrically Operated
Power: 1000 Watts
Certifications
EXP1 models certified for :
Class I, Group D, Division 1 and Class II, Groups E, F and G , Division 1
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
IECEx Certified
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Less than 10 Ohms of resistivity
- HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
- *Cleanroom compatible. Can be used in the pharmaceutical industry with optional stainless steel cart
- Designed for applications where finely pulverized dust is to be recovered
- Single phase explosion proof/dust ignition proof motor
- Available with Manual Filter Shaker (MFS) system
- For dry recovery only
- All stainless steel SAE 304 construction (except cart). Stainless steel cart available
- Detachable recovery tank (DT). Recovery capacity of 8.75 gallons (35 liters)
- Equipped with an SD* polyliner and clip for easy and safe disposal of recovered materials
- Equipped with an SD* 4-wheel cart and tool basket
- Complete static dissipating tool kit and suction hose included
SD* Static Dissipative
EXP1-35L (DT) RE HEPA (MRP)
Electrically Operated
Electrically Operated
Power: 1000 Watts
Certifications
EXP1 models certified for :
Class I, Group D, Division 1 and Class II, Groups E, F and G , Division 1
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
IECEx Certified
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Less than 10 Ohms of resistivity
- HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
- *Cleanroom compatible. Can be used in the pharmaceutical industry with optional stainless steel cart
- Designed for applications where finely pulverized dust is to be recovered
- Single phase explosion proof/dust ignition proof motor
- Available with Manual Reverse Purge (MRP) system
- For dry recovery only
- All stainless steel SAE 304 construction (except cart). Stainless steel cart available
- Detachable recovery tank (DT). Recovery capacity of 8.75 gallons (35 liters)
- Equipped with an SD* polyliner and clip for easy and safe disposal of recovered materials
- Equipped with an SD* 4-wheel cart and tool basket
- Complete static dissipating tool kit and suction hose included
SD* Static Dissipative
EXP1-40L (4W) RE HEPA (FR-P) SERIES
Electrically Operated
Electrically Operated
Power: 1000 Watts
Certifications
EXP1 models certified for :
Class I, Group D, Division 1 and Class II, Groups E, F and G , Division 1
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
IECEx Certified
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Less than 10 Ohms of resistivity
- HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
- Designed for the recovery of flammable and toxic powders such as unspent gunpowder and lead contaminants
- Ideal for shooting ranges, army ammunition depots, manufacturers of firearms and pyrotechnic industries
- Single phase explosion proof/dust ignition proof motor
- For dry recovery only. Optional Floater System available for liquid recovery
- All stainless steel SAE 304 construction.
- Recovery capacity of 10.5 gallons (40 liters)
- Equipped with an SD* polyliner and clip for easy and safe disposal of recovered materials
- Equipped with an SD* 4-wheel dolly for easy maneuverability
- Complete static dissipating tool kit and suction hose included
SD* Static Dissipative
CD-120V EX SERIES
Electrically Operated
Electrically Operated
Power: 1-5 HP
Certifications
CD-EX models certified for :
Class I, Group D, Division 1 and Class II, Groups F and G, Division 1
*Class II - Division 1 - Group E (metal dust) motor available
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
IECEx Certified
- Legally certified explosion proof/dust ignition proof by a notified body
- Less than 10 Ohms of resistivity
- HEPA Filter - Optional with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
- Muffler included
- Available with a Self Cleaning Filter (SCF) or Manual Reverse Purge with Finger Tubes (MRPFT) system
- Designed to be attached to process machines and for general cleanup
- Can be used for the recovery of tablets in the pharmaceutical industry
- Continuous duty single phase explosion proof/dust ignition proof motor
- For dry recovery only
- Stainless steel SAE 304 body and powder coated cabinet. All stainless steel SAE 304 pharma version available
- Vertical mounting for areas with space constraints. Unit has a small environmental footprint
- Equipped with an SD* polyliner and clip for easy and safe disposal of recovered materials
- Recovery capacity of 13.2 gallons (50 liters)
- Includes a complete static dissipative tool kit
- Group E Motor (Metal Dust) and Switch available
- Other motor performances available
CD-120V EX PHARMA SERIES
Electrically Operated
Electrically Operated
Power: 1-5 HP
Certifications
CD-EX models certified for :
Class I, Group D, Division 1 and Class II, Groups F and G, Division 1
*Class II - Division 1 - Group E (metal dust) motor available
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
IECEx Certified
- Legally certified explosion proof/dust ignition proof by a notified body
- Less than 10 Ohms of resistivity
- HEPA Filter - Optional with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
- Muffler included
- Available with a Self Cleaning Filter (SCF) or Manual Reverse Purge with Filter Tubes (MRPFT) system
- Designed to be attached to process machines and for general cleanup
- Can be used for the recovery of tablets in the pharmaceutical industry
- Continuous duty single phase explosion proof/dust ignition proof motor
- For dry recovery only
- All stainless steel SAE 304 construction
- Vertical mounting for areas with space constraints. Unit has a small environmental footprint
- Equipped with an SD* polyliner and clip for easy and safe disposal of recovered materials
- Recovery capacity of 13.2 gallons (50 liters)
- Includes a complete static dissipative tool kit
- Group E Motor (Metal Dust) and Switch available
- Other motor performances available
CD-25L (DT) EX (MFS)
Electrically Operated
Electrically Operated
Power: 1-2 HP
Certifications
CD-EX models certified for :
Class I, Group D, Division 1 and Class II, Groups F and G, Division 1
*Class II - Division 1 - Group E (metal dust) motor available
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
IECEx Certified
- Legally certified explosion proof/dust ignition proof by a notified body
- HEPA Filter - Optional with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
- ULPA Filter - Optional with an efficiency of 99.999% on 0.12 micron. Tested: IEST RP-CC001.3. Filtration efficiency of 99.9995% on 0.18 micron. Tested: IEST RP-CC001.3. U15 by MPPS method as per EN 1822.
- Muffler included
- Manometer included
- Equipped with Manual Filter Shaker (MFS)
- Designed for general maintenance
- Continuous duty single or 3-phase explosion proof motor/blower from 1 HP to 2 HP
- Camlock, Ø2" (Ø50mm)suction intake
- For dry recovery only
- All stainless steel construction (except cart)
- Optional polyliner and clip for easy and safe disposal of recovered materials
- Detachable Recovery Tank with a capacity of 7.4 gallons (28 liters)
- Complete tool kit included
- Group E Motor (Metal Dust) and Switch available
- Other motor performances available
CD-63L EX (W&D)
Electrically Operated
Electrically Operated
Power: 1-2 HP
Certifications
CD-EX models certified for :
Class I, Group D, Division 1 and Class II, Groups F and G, Division 1
*Class II - Division 1 - Group E (metal dust) motor available
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
IECEx Certified
- Legally certified explosion proof/dust ignition proof by a notified body
- HEPA Filter - Optional with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
- ULPA Filter - Optional with an efficiency of 99.999% on 0.12 micron. Tested: IEST RP-CC001.3. Filtration efficiency of 99.9995% on 0.18 micron. Tested: IEST RP-CC001.3. U15 by MPPS method as per EN 1822.
- Muffler included
- Manometer included
- Ideal for wet recovery. Unit is equipped with a wet floater system and liquid filter. A dry filter is also included for occasional dry bulk recovery
- Designed for general maintenance
- Continuous duty single and 3-phase explosion proof motor/blower from 1 HP to 2HP
- Camlock, Ø2" (Ø50mm)suction intake
- All stainless steel construction (except cart)
- Recovery Tank with a capacity of 16 gallons (65 liters) for wet and dry recovery models
- Complete tool kit included
- Group E Motor (Metal Dust) and Switch available
- Other motor performances available
CD-35L (DT) EX (MRPFT)
Electrically Operated
Electrically Operated
Power: 1-2 HP
Certifications
CD-EX models certified for :
Class I, Group D, Division 1 and Class II, Groups F and G, Division 1
*Class II - Division 1 - Group E (metal dust) motor available
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
IECEx Certified
- Legally certified explosion proof/dust ignition proof by a notified body
- HEPA Filter - Optional with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
- ULPA Filter - Optional with an efficiency of 99.999% on 0.12 micron. Tested: IEST RP-CC001.3. Filtration efficiency of 99.9995% on 0.18 micron. Tested: IEST RP-CC001.3. U15 by MPPS method as per EN 1822.
- Muffler included
- Manometer included
- Equipped with Manual Reverse Purge with Filter Tubes (MRPFT) system
- Designed for general maintenance
- Continuous duty single or 3-phase explosion proof motor/blower
- Camlock, Ø2" (Ø50mm)suction intake
- For dry recovery only
- All stainless steel construction (except cart)
- Optional polyliner and clip for easy and safe disposal of recovered materials·
- Detachable Recovery Tank with a capacity of 9.2 gallons (35 liters)
- Complete tool kit included
- Group E Motor (Metal Dust) and Switch available
- Other motor performances available
CD-230V EX SERIES
Electrically Operated
Electrically Operated
Power: 1-5 HP
Certifications
CD-EX models certified for :
Class I, Group D, Division 1 and Class II, Groups F and G, Division 1
*Class II - Division 1 - Group E (metal dust) motor available
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
IECEx Certified
- Legally certified explosion proof/dust ignition proof by a notified body
- Less than 10 Ohms of resistivity
- HEPA Filter - Optional with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
- Muffler included
- Available with a Self Cleaning Filter (SCF) or Manual Reverse Purge with Filter Tubes (MRPFT) system
- Designed to be attached to process machines and for general cleanup
- Can be used for the recovery of tablets in the pharmaceutical industry
- Continuous duty single phase explosion proof/dust ignition proof motor, 230V, 1.5HP
- For dry recovery only
- Stainless steel SAE 304 body and powder coated cabinet. All stainless steel SAE 304 pharma version available
- Vertical mounting for areas with space constraints. Unit has a small environmental footprint
- Equipped with an SD* polyliner and clip for easy and safe disposal of recovered materials
- Recovery capacity of 13.2 gallons (50 liters)
- Includes a complete static dissipative tool kit
- Group E Motor (Metal Dust) and Switch available
- Other motor performances available
CD-230V EX PHARMA SERIES
Electrically Operated
Electrically Operated
Power: 1-5 HP
Certifications
CD-EX models certified for :
Class I, Group D, Division 1 and Class II, Groups F and G, Division 1
*Class II - Division 1 - Group E (metal dust) motor available
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
IECEx Certified
- Legally certified explosion proof/dust ignition proof by a notified body
- Less than 10 Ohms of resistivity
- HEPA Filter - Optional with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
- Muffler included
- Available with a Self Cleaning Filter (SCF) or Manual Reverse Purge with Filter Tubes (MRPFT) system
- Designed to be attached to process machines and for general cleanup
- Can be used for the recovery of tablets in the pharmaceutical industry
- Continuous duty single phase explosion proof/dust ignition proof motor
- For dry recovery only
- All stainless steel SAE 304 construction
- Vertical mounting for areas with space constraints. Unit has a small environmental footprint
- Equipped with an SD* polyliner and clip for easy and safe disposal of recovered materials
- Recovery capacity of 13.2 gallons (50 liters)
- Includes a complete static dissipative tool kit
- Group E Motor (Metal Dust) and Switch available
- Other motor performances available
CD/EUR-36L EX DT (MFS) ULPA
Electrically Operated
Electrically Operated
Power: 1-2 HP
Certifications
CD-EX models certified for :
Class I, Group D, Division 1 and Class II, Groups F and G, Division 1
*Class II - Division 1 - Group E (metal dust) motor available
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
IECEx Certified
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Single Phase (TEFC) continuous duty motor. 115/230 volts, 50/60 Hz, 1-2 HP (1-1.5 kW). 3-Phase motor available
- Less than 10 Ohms of resistivity
- ULPA Filter - Included with an efficiency of 99.999% on 0.12 micron. Tested: IEST RP-CC001.3. Filtration efficiency of 99.9995% on 0.18 micron. Tested: IEST RP-CC001.3. U15 by MPPS method as per EN 1822.
- *Cleanroom compatible. Can be used in the pharmaceutical industry with optional stainless steel cart SAE 304
- Manual Filter Shaker (MFS) with SD* Teflon laminated Main Cloth Filter Assembly
- SD* Main Cloth Filter Assembly is contained within a removable Filter Chamber
- All stainless steel SAE 304 construction
- Detachable recovery tank (DT). Recovery capacity of 9.2 gallons (35 liters)
- Optional SD* polyliner and clip available for easy and safe disposal of recovered materials
- Vertical mounting for areas with space constraints. Unit has a small environmental footprint
- Equipped with a Carriage with Suspended Motor Top (CSMT) and tool basket. Includes static dissipative wheels
- Optional Ø1.5" (Ø38mm) or Ø2" (Ø50mm) accessories available according to needs
- Dimesions: H: 70" (1.78m) x W: 22" (56 cm) x L: 31" (79 cm) Weight: 218 lbs (99 kg)
- Group E Motor (Metal Dust) and Switch available
- Other motor performances available
SD* Static Dissipative
CD/EUR-36L EX DT (MRP) ULPA
Electrically Operated
Electrically Operated
Power: 1-2 HP
Certifications
CD-EX models certified for :
Class I, Group D, Division 1 and Class II, Groups F and G, Division 1
*Class II - Division 1 - Group E (metal dust) motor available
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
IECEx Certified
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Single Phase (TEFC) continuous duty motor.· 115/230 volts, 50/60 Hz, 1-2 HP (1-1.5 kW).· 3-Phase motor available
- Less than 10 Ohms of resistivity
- ULPA Filter - Included with an efficiency of 99.999% on 0.12 micron. Tested: IEST RP-CC001.3. Filtration efficiency of 99.9995% on 0.18 micron. Tested: IEST RP-CC001.3. U15 by MPPS method as per EN 1822.
- *Cleanroom compatible.· Can be used·in the pharmaceutical industry with optional stainless steel cart SAE 304
- Manual·Reverse Purge·(MRP)
- SD* Reverse Purge Cartridge is contained within a removable Filter Chamber
- All stainless steel SAE 304 construction (except cart)
- Detachable recovery tank (DT).· Recovery capacity of·9.2 gallons (35 liters)
- Optional SD* polyliner and clip available for easy and safe disposal of recovered materials
- Vertical mounting for areas with space constraints. Unit has a small environmental footprint
- Equipped with a Carriage with Suspended Motor Top (CSMT) and tool basket.· Includes static dissipative wheels
- Optional Ø1.5" (Ø38mm) or Ø2" (Ø50mm) accessories available according to needs
- Dimensions: H: 70" (1.78m) x W: 22" (56 cm) x L: 31" (79 cm) Weight: 218 lbs (99 kg)
- Group E Motor (Metal Dust) and Switch available
- Other motor performances available
- SD* Static Dissipative
CD-2600 EX (ARP)
Electrically Operated
Electrically Operated
Power: 1-5.4 HP
Certifications
CD-EX models certified for :
Class I, Group D, Division 1 and Class II, Groups F and G, Division 1
*Class II - Division 1 - Group E (metal dust) motor available
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
IECEx Certified
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Less than 10 Ohms of resistivity
- HEPA Filter - Optional with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822. Or ULPA Filter - Optional with an efficiency of 99.999% on 0.12 micron. Tested: IEST RP-CC001.3. Filtration efficiency of 99.9995% on 0.18 micron. Tested: IEST RP-CC001.3. U15 by MPPS method as per EN 1822. Or
- *Cleanroom compatible·
- Designed to be attached to process machines and for general cleanup
- Can be used for the recovery of tablets in the pharmaceutical industry
- Continuous duty single or 3-phase explosion proof/dust ignition proof motor
- Available with Automatic Reverse Purge (ARP)
- Available in a fixed or mobile unit
- All stainless steel SAE 304/316 construction
- For dry recovery only (liquids can be recovered into a separate tank)
- Detachable recovery tank (DT) for easy disposal of recovered materials. Recovery capacity of 9.5 gallons (38 liters)
- Vertical mounting for areas with space constraints. Unit has a small environmental footprint
- Equipped with 4 wheels
- Group E Motor (Metal Dust) and Switch available
- Other motor performances available
CD-2600 EX (MFS)
Electrically Operated
Electrically Operated
Power: 1-5.4 HP
Certifications
CD-EX models certified for :
Class I, Group D, Division 1 and Class II, Groups F and G, Division 1
*Class II - Division 1 - Group E (metal dust) motor available
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
IECEx Certified
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Less than 10 Ohms of resistivity
- HEPA Filter - Optional with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822. Or ULPA Filter - Optional with an efficiency of 99.999% on 0.12 micron. Tested: IEST RP-CC001.3. Filtration efficiency of 99.9995% on 0.18 micron. Tested: IEST RP-CC001.3. U15 by MPPS method as per EN 1822. Or
- *Cleanroom compatible·
- Designed to be attached to process machines and for general cleanup
- Can be used for the recovery of tablets in the pharmaceutical industry
- Continuous duty single or 3-phase explosion proof/dust ignition proof motor
- Available with Manual Filter Shaker (MFS)
- Available in a fixed or mobile unit
- All stainless steel SAE 304/316 construction
- For dry recovery only (liquids can be recovered into a separate tank)
- Detachable recovery tank (DT) for easy disposal of recovered materials. Recovery capacity of 9.5 gallons (38 liters)
- Vertical mounting for areas with space constraints. Unit has a small environmental footprint
- Equipped with 4 wheels
- Group E Motor (Metal Dust) and Switch available
- Other motor performances available
CD-2600 EX (MRP)
Electrically Operated
Electrically Operated
Power: 1-5.4 HP
Certifications
CD-EX models certified for :
Class I, Group D, Division 1 and Class II, Groups F and G, Division 1
*Class II - Division 1 - Group E (metal dust) motor available
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
IECEx Certified
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Less than 10 Ohms of resistivity
- HEPA Filter - Optional with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822. Or ULPA Filter - Optional with an efficiency of 99.999% on 0.12 micron. Tested: IEST RP-CC001.3. Filtration efficiency of 99.9995% on 0.18 micron. Tested: IEST RP-CC001.3. U15 by MPPS method as per EN 1822. Or
- *Cleanroom compatible·
- Designed to be attached to process machines and for general cleanup
- Can be used for the recovery of tablets in the pharmaceutical industry
- Continuous duty single or 3-phase explosion proof/dust ignition proof motor
- Available with Manual Reverse Purge (MRP)
- Available in a fixed or mobile unit
- All stainless steel SAE 304/316 construction
- For dry recovery only (liquids can be recovered into a separate tank)
- Detachable recovery tank (DT) for easy disposal of recovered materials. Recovery capacity of 9.5 gallons (38 liters)
- Vertical mounting for areas with space constraints. Unit has a small environmental footprint
- Equipped with 4 wheels
- Group E Motor (Metal Dust) and Switch available
- Other motor performances available
Note:
- HEPA Filters - efficiency of 99.995% on 0.3 microns - Tested IEST RP-CC001.3 - H14 as per MPPS method EN 1822.
- ULPA Filters - efficiency of 99.999% on 0.3 microns - Filtration efficiency of 99.9995% on 0.18 microns - Tested IEST RP-CC001.3 - U15 as per MPPS method EN 1822
- Please be advised that all Tiger-Vac HEPA/ULPA Filters are Aerosol tested when assembled, either upstream or downstream, inside of the vacuum cleaners.
- All Tiger-Vac HEPA/ULPA Filters are assembled mechanically with 3 bolts and include a specially designed memory gasket in order to prevent any leaks during the life span of the gasket thus insuring the health and safety of the end user.
