Pneumatically (Air) Operated Explosion Proof / Dust Ignition Proof Industrial Vacuum Cleaners

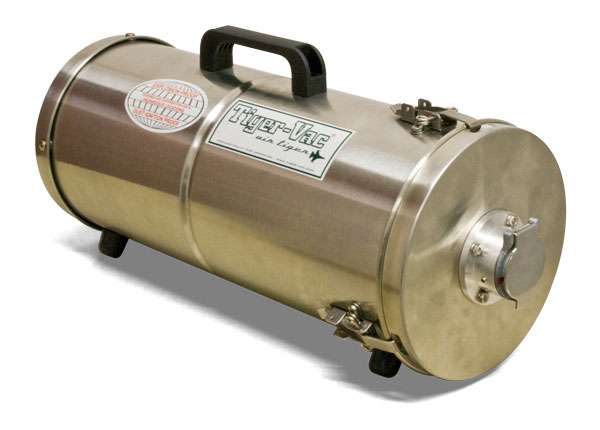

SSAT-2L (HH) AIR TIGER
Pneumatically (Air) Operated
Pneumatically (Air) Operated
Certifications
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
II 2 G/D c IIC T6 (85oC)
- HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
- *Cleanroom compatible. Can be used in the pharmaceutical industry
- Pneumatically (air) operated
- For dry recovery only
- All stainless steel SAE 304 construction
- Handheld with shoulder straps
- Recovery capacity of 0.5 gallon (2 liters) in optional Disposable Filter Bag
- Available with an optional Carrying Case
- Equipped with a complete static dissipating tool kit, including suction and air line hoses

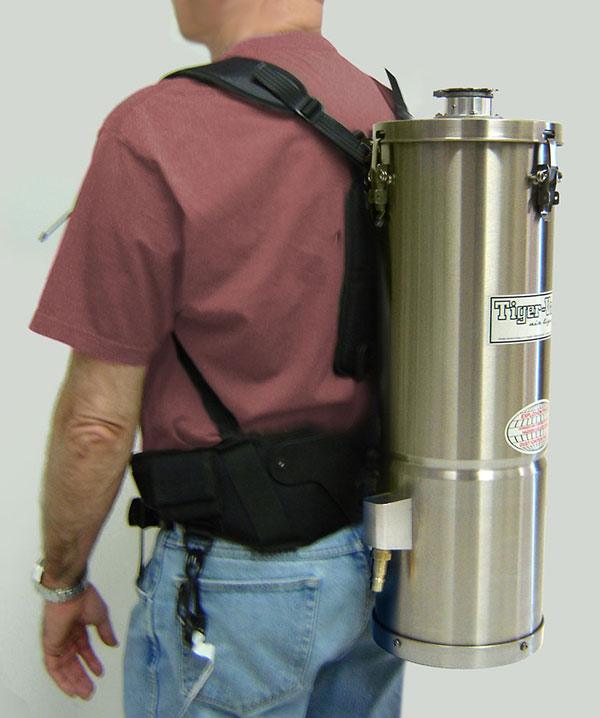

SSAT-6L (BP) AIR TIGER
Pneumatically (Air) Operated
Pneumatically (Air) Operated
Certifications
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
II 2 G/D c IIC T6 (85oC)
- HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
- *Cleanroom compatible. Can be used in the pharmaceutical industry
- Pneumatically (air) operated
- For dry recovery only
- All stainless steel SAE 304 construction
- Lighweight and equipped with a backpack harness
- Recovery capacity of 1.5 gallons (6 liters) in optional Disposable Filter Bag
- Available with an optional Carrying Case
- Equipped with a complete static dissipating tool kit, including suction and air line hoses

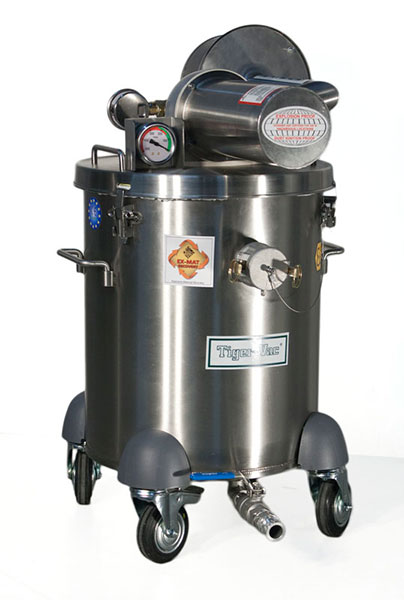

SS-10 (4W) BASE MODEL
Pneumatically (Air) Operated
Pneumatically (Air) Operated
Certifications
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
II 2 G/D c IIC T6 (85oC)
LCIE 03 ATEX 6310
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Less than 10 Ohms of resistivity
- HEPA Filter - Optional with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822. Or ULPA Filter - Optional with an efficiency of 99.999% on 0.12 micron. Tested: IEST RP-CC001.3. Filtration efficiency of 99.9995% on 0.18 micron. Tested: IEST RP-CC001.3. U15 by MPPS method as per EN 1822. Or
- *Cleanroom compatible. Can be used in the pharmaceutical industry
- For general cleanup in hazardous locations
- Pneumatically (air) operated
- For dry recovery only. Liquid recovery conversion kit optional
- All stainless steel SAE 304 construction (except cart). Stainless steel cart available
- Recovery tank capacity of 10 gallons (38 liters)
- Optional SD* polyliner and clip available for easy and safe disposal of recovered materials
- Based on an SD* 4-wheel dolly for easy manoeuverability
- Complete static dissipating tool kit and suction hose optional
SD* Static Dissipative

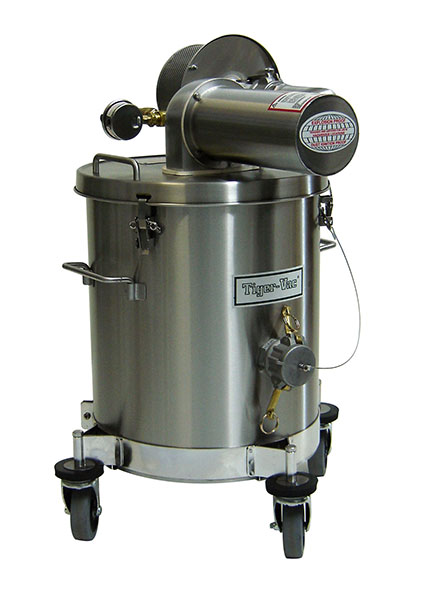

SS-10 (4W) (RE) HEPA FOR POTENT POWDER RECOVERY
Pneumatically (Air) Operated
Pneumatically (Air) Operated
Certifications
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
II 2 G/D c IIC T6 (85oC)
LCIE 03 ATEX 6310
- Legally certified explosion proof/dust ignition proof vacuum cleaner by a recognized testing laboratory
- Less than 10 Ohms of resistivity
- HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822. Or ULPA Filter - Optional with an efficiency of 99.999% on 0.12 micron. Tested: IEST RP-CC001.3. Filtration efficiency of 99.9995% on 0.18 micron. Tested: IEST RP-CC001.3. U15 by MPPS method as per EN 1822.
- Designed for the recovery of potent powders in hazardous locations
- Pneumatically (air) operated
- For dry recoveryonly
- All stainless steel SAE 304 construction
- Recovery tank capacity of 6 gallons (23 liters)
- Equipped with a conductive cloth recovery bag and SD* polyliner and clip for easy and safe disposal of recovered dry materials
- Based on an SD* 4-wheel dolly for easy manoeuverability
- Complete static dissipating tool kit and suction hose included
SD* Static Dissipative

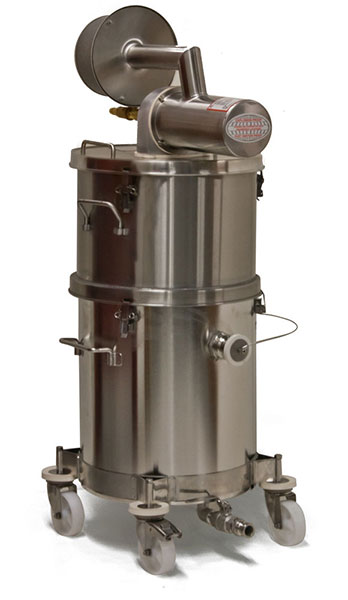

SS-10 (4W) RE HEPA (MRAC)
Pneumatically (Air) Operated
Pneumatically (Air) Operated
Certifications
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
II 2 G/D c IIC T6 (85oC)
LCIE 03 ATEX 6310
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Less than 10 Ohms of resistivity
- HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822. Or ULPA Filter - Optional with an efficiency of 99.999% on 0.12 micron. Tested: IEST RP-CC001.3. Filtration efficiency of 99.9995% on 0.18 micron. Tested: IEST RP-CC001.3. U15 by MPPS method as per EN 1822.
- For general cleanup in hazardous locations
- Pneumatically (air) operated
- Equipped with a Middle Ring with Activated Carbon Cartridge for the adsorption of fumes and vapors
- For wet & dry recovery
- All stainless steel SAE 304 construction
- Recovery tank capacity of 7.5 gallons (28.5 liters) - wet and 6 gallons (23 liters) - dry
- Optional SD* polyliner and clip available for easy and safe disposal of recovered materials
- Based on an SD* 4-wheel dolly for easy manoeuverability
- Complete static dissipating tool kit and suction hose included
SD* Static Dissipative
SS-10 TO 55 RE SERIES
Pneumatically (Air) Operated
Pneumatically (Air) Operated
Certifications
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
II 2 G/D c IIC T6 (85oC)
LCIE 03 ATEX 6310
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Less than 10 Ohms of resistivity
- HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822. Or ULPA Filter - Optional with an efficiency of 99.999% on 0.12 micron. Tested: IEST RP-CC001.3. Filtration efficiency of 99.9995% on 0.18 micron. Tested: IEST RP-CC001.3. U15 by MPPS method as per EN 1822.
- *Cleanroom compatible. Can be used in the pharmaceutical industry
- For general cleanup in hazardous locations
- Pneumatically (air) operated
- For wet and dry recovery
- All stainless steel SAE 304 construction (except cart). Stainless steel cart available
- Recovery tank capacity of 10 - 55 gallons (38 - 209 liters)
- Optional SD* polyliner and clip available for easy and safe disposal of recovered materials
- Based on an SD* 4-wheel dolly or on an SD* 4-wheel tilting cart to allow for easy emptying of recovered materials
- Complete static dissipating tool kit and suction hose included
SD* Static Dissipative
SS-20L EX (MFS) RE HEPA SINGLE VENTURI
Pneumatically (Air) Operated
Pneumatically (Air) Operated
Certifications
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
II 2 G/D c IIC T6 (85oC)
LCIE 03 ATEX 6310
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Less than 10 Ohms of resistivity
- HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
- *Cleanroom compatible. Can be used in the pharmaceutical industry with optional stainless steel cart
- Designed for applications where finely pulverized dust is to be recovered
- Pneumatically (air) operated
- Available with Manual Filter Shaker (MFS) system
- For dry recovery only
- All stainless steel SAE 304 construction (except cart). Stainless steel cart available
- Detachable recovery tank (DT). Recovery capacity of 6.25 gallons (25 liters)
- Equipped with an SD* polyliner and clip for easy and safe disposal of recovered materials
- Equipped with an SD* 4-wheel cart and tool basket
- Complete static dissipating tool kit and suction hose included
SD* Static Dissipative
SS-35L EX (MFS) RE HEPA SINGLE VENTURI
Pneumatically (Air) Operated
Pneumatically (Air) Operated
Certifications
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
II 2 G/D c IIC T6 (85oC)
LCIE 03 ATEX 6310
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Less than 10 Ohms of resistivity
- HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
- *Cleanroom compatible. Can be used in the pharmaceutical industry with optional stainless steel cart
- Designed for applications where finely pulverized dust is to be recovered
- Pneumatically (air) operated
- Available with Manual Filter Shaker (MFS) system
- For dry recovery only
- All stainless steel SAE 304 construction (except cart). Stainless steel cart available
- Detachable recovery tank (DT). Recovery capacity of 8.75 gallons (35 liters)
- Equipped with an SD* polyliner and clip for easy and safe disposal of recovered materials
- Equipped with an SD* 4-wheel cart and tool basket
- Complete static dissipating tool kit and suction hose included
SD* Static Dissipative
SS-35L EX (MRP) RE HEPA SINGLE VENTURI
Pneumatically (Air) Operated
Pneumatically (Air) Operated
Certifications
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
II 2 G/D c IIC T6 (85oC)
LCIE 03 ATEX 6310
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Less than 10 Ohms of resistivity
- HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
- *Cleanroom compatible. Can be used in the pharmaceutical industry with optional stainless steel cart
- Designed for applications where finely pulverized dust is to be recovered
- Pneumatically (air) operated
- Available with Manual Reverse Purge (MRP) system
- Total surface area of SD* Reverse Purge Cartridge and Skirt is: 16.3 ft² (15 100 cm²) for MRP models
- For dry recovery only
- All stainless steel SAE 304 construction (except cart). Stainless steel cart available
- Detachable recovery tank (DT). Recovery capacity of 8.75 gallons (35 liters)
- Equipped with an SD* polyliner and clip for easy and safe disposal of recovered materials
- Equipped with an SD* 4-wheel cart and tool basket
- Complete static dissipating tool kit and suction hose included
SD* Static Dissipative
SS-40L (4W) RE HEPA (FR-P) SERIES
Pneumatically (Air) Operated
Pneumatically (Air) Operated
Certifications
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
II 2 G/D c IIC T6 (85oC)
LCIE 03 ATEX 6310
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Less than 10 Ohms of resistivity
- HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
- Designed for the recovery of flammable and toxic powders such as unspent gunpowder and lead contaminants
- Ideal for shooting ranges, army ammunition depots, manufacturers of firearms and pyrotechnic industries
- Pneumatically (air) operated
- For dry recovery only. Optional Floater System available for liquid recovery
- All stainless steel SAE 304 construction (except cart). Stainless steel cart available
- Recovery capacity of 10.5 gallons (40 liters)
- Equipped with an SD* polyliner and clip included for easy and safe disposal of recovered materials
- Equipped with an SD* 4-wheel dolly for easy manoeuverability
- Complete static dissipating tool kit and suction hose included
SD* Static Dissipative
SS-63L EX (MFS) RE HEPA SINGLE/TWIN VENTURI
Pneumatically (Air) Operated
Pneumatically (Air) Operated
Certifications
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
II 2 G/D c IIC T6 (85oC)
LCIE 03 ATEX 6310
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Less than 10 Ohms of resistivity
- HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
- *Cleanroom compatible. Can be used in the pharmaceutical industry with optional stainless steel cart
- Designed for applications where finely pulverized dust is to be recovered
- Pneumatically (air) operated
- Available with Manual Filter Shaker (MFS) system
- For dry recovery only
- All stainless steel SAE 304 construction (except cart). Stainless steel cart available
- Detachable recovery tank (DT). Recovery capacity of 15.8 gallons (63 liters)
- Equipped with an SD* polyliner and clip for easy and safe disposal of recovered materials
- Equipped with an SD* 4-wheel cart for easy manoeuverability
- Complete static dissipating tool kit and suction hose included
SD* Static Dissipative
SS-63L EX (MRP) RE HEPA SINGLE/TWIN VENTURI
Pneumatically (Air) Operated
Pneumatically (Air) Operated
Certifications
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
II 2 G/D c IIC T6 (85oC)
LCIE 03 ATEX 6310
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Less than 10 Ohms of resistivity
- HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
- *Cleanroom compatible. Can be used in the pharmaceutical industry with optional stainless steel cart
- Designed for applications where finely pulverized dust is to be recovered
- Pneumatically (air) operated
- Available with Manual Reverse Purge (MRP) system
- Total surface area of SD* Reverse Purge Cartridge and Skirt is: 19.1 ft² (17 700 cm²) for MRP models
- For dry recovery only
- All stainless steel SAE 304 construction (except cart). Stainless steel cart available
- Detachable recovery tank (DT). Recovery capacity of 15.8 gallons (63 liters)
- Equipped with an SD* polyliner and clip for easy and safe disposal of recovered materials
- Equipped with an SD* 4-wheel cart for easy manoeuverability
- Complete static dissipating tool kit and suction hose included
SD* Static Dissipative
SS-40/160L EX RE HEPA TWIN VENTURI SERIES
Pneumatically (Air) Operated
Pneumatically (Air) Operated
Certifications
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
II 2 G/D c IIC T6 (85oC)
LCIE 03 ATEX 6310
- Legally certified explosion proof/dust ignition proof vacuum cleaner
- Less than 10 Ohms of resistivity
- HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822. Or ULPA Filter - Optional with an efficiency of 99.999% on 0.12 micron. Tested: IEST RP-CC001.3. Filtration efficiency of 99.9995% on 0.18 micron. Tested: IEST RP-CC001.3. U15 by MPPS method as per EN 1822.
- *Cleanroom compatible. Can be used in the pharmaceutical industry with optional stainless steel cart
- Pneumatically (air) operated
- Manual or Fully automatic filtration cleaning systems
- All Stainless Steel SAE 304 construction. (except cart). Optional stainless steel cart available
- For dry recovery (liquids can be recovered into a separate tank)
- Detachable recovery tank (DT) fior easy disposal of recovered materials. Recovery capacity of 40 gallons (152 liters)
Note:
- HEPA Filters - efficiency of 99.995% on 0.3 microns - Tested IEST RP-CC001.3 - H14 as per MPPS method EN 1822.
- ULPA Filters - efficiency of 99.999% on 0.3 microns - Filtration efficiency of 99.9995% on 0.18 microns - Tested IEST RP-CC001.3 - U15 as per MPPS method EN 1822
- Please be advised that all Tiger-Vac HEPA/ULPA Filters are Aerosol tested when assembled, either upstream or downstream, inside of the vacuum cleaners.
- All Tiger-Vac HEPA/ULPA Filters are assembled mechanically with 3 bolts and include a specially designed memory gasket in order to prevent any leaks during the life span of the gasket thus insuring the health and safety of the end user.
