Pyrotechnics Conductive Dust
Pyrotechnics is the science of materials capable of undergoing exothermic chemical reactions. Pyrotechnics are dangerous substances and must be treated with utmost respect and proper training. Tiger-Vac has a full line of legally certified Explosion Proof / Dust Ignition Proof vacuum cleaners designed to recover these pyrotechnic powders.
To view all of Tiger-Vac's line of electric single phase explosion proof vacuum cleaners click here.
To view all of Tiger-Vac's line of electric three phase explosion proof vacuum cleaners click here.
To view all of Tiger-Vac's line of pneumatic explosion proof vacuum cleaners click here.
Quick Facts
CD-EX models certified for :
Class I, Group D, Division 1 and Class II, Groups F and G, Division 1
*Class II - Division 1 - Group E (metal dust) motor available
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
IECEx Certified
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Less than 10 Ohms of resistivity
- Coalescing Filter Element (CFE) for moisture removal
- HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
- Designed for the recovery and neutralization of conductive and explosive dust into a liquid immersion bath
- Optional Conversion Kit for Wet & Dry Recovery available
- Continuous duty single or 3-phase explosion proof/dust ignition proof motor
- Stainless steel SAE 304 Interceptor tank
- Recovery capacity of 1 gallon (4 liters) of dust into 5 gallons (20 liters) of liquid
- Equipped with a heavy duty powder coated Hydraulic Cart for easy emptying of recovered materials
- Group E Motor (Metal Dust) and Switch included
- Other motor performances available
Details
Stainless steel Interceptor tank and powder coated Hydraulic Cart. Less than 10 Ohms of resistivity. This unit is equipped with a Coalescing Filter Element (CFE) for moisture removal. The unit is also equipped with al true HEPA Filter (H14). This unit has been designed for the recovery of metallic, conductive and explosive dusts into an immersion liquid bath such as water, parafiin oil, mineral oil, etc. This unit renders any hazardous dust inert. This unit can be converted for the recovery of fuel, solvents and acids. The heavy duty powder coated Hydraulic Cart allows for the unit to be lifted up to 36" (91 cm) above the ground so that contents can be emptied into a recovery container for disposal.
High Efficiency Particulate Air Filter
A HEPA filter is a type of air filter, which means it filters the air coming in or out of the vacuum cleaner system. It can remove at least 99.99% of dust, pollen, mould, bacteria and any other airborn particles with a size of 0.3 micron or larger.
North-America: Each HEPA Filter has a minimum filtration efficiency of 99.99% on 0.3 micron. Tested as per IEST-RP-CC001.3 and OSHA compliant.
Europe: Each HEPA Filter has a minimum filtration efficiency of 99.995% on 0.3 micron, rated H14 as per EN 1822 by MPPS method.
Click here to download Tiger-Vac's HEPA Filter's standards chart.
Coalescing Filter Element
The Coalescing filter element is used for the removal of solid particles, water and oil aerosols.
Explosion Proof Requirement
In order for Tiger-Vac to legally certify an Explosion Proof/Dust Ignition Proof vacuum cleaner system the unit must be static dissipative (SD*) and conductive and have a resistivity measuring less than 10 Ohms to any point on the vacuum cleaner system. This makes the unit eligible to be Explosion Proof/Dust Ignition Proof and be part of Tiger-Vac's quality control management system ISO 9001:2008.
When using a pneumatic Explosion Proof Vacuum Cleaner System the customer must make sure that the source of air supply (compressor) is grounded.
Brochures & Certificates
| Name | Description | Download |
| CD-IT EX (CFE) HY-C HEPA Brochure (Metric) | Technical data for CD-IT EX (CFE) HY-C HEPA in metric units (Millimeters, Kilograms...) | Brochure Letter (8½" × 11") Brochure A4 (210mm × 297mm) |
| CD-IT EX (CFE) HY-C HEPA Brochure (Imperial) | Technical data for CD-IT EX (CFE) HY-C HEPA in imperial units (Inches, Pounds...) | Brochure Letter (8½" × 11") Brochure A4 (210mm × 297mm) |
Quick Facts
II 2 G/D c IIC T6 (85oC)
LCIE 03 ATEX 6310
GUARANTEED to be capable of safely recovering combustible/conductive dusts &/or flammable liquids.
Designed for use in Class I - Groups A, B, C and D , Division 1, T6; and Class II - Groups E, F, G, Division 1, Hazardous Locations as defined in the National Electric Code (NFPA 70)
- Legally certified explosion proof/dust ignition proof by a recognized testing laboratory
- Less than 10 Ohms of resistivity
- Coalescing Filter Element (CFE) for moisture removal
- HEPA Filter - Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST RP-CC001.3. H14 by MPPS method as per EN 1822.
- Designed for the recovery and neutralization of conductive and explosive dust into a liquid immersion bath
- Optional Conversion Kit for Wet & Dry Recovery available
- Pneumatically (air) operated
- Stainless steel SAE 304 Interceptor tank
- Recovery capacity of 1 gallon (4 liters) of dust into 5 gallons (20 liters) of liquid
- Equipped with a heavy duty powder coated Hydraulic Cart for easy emptying of recovered materials.
Details

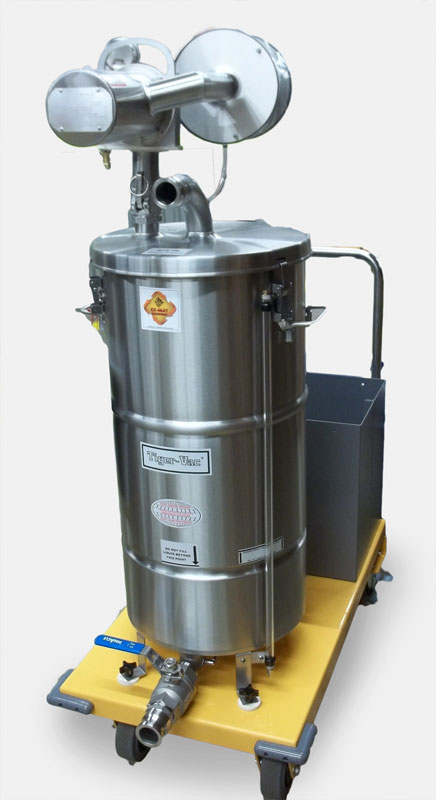

Stainless steel SAE 304 Interceptor tank and powder coated Hydraulic Cart. Less than 10 Ohms of resistivity. This unit is equipped with a Coalescing Filter Element (CFE), located upstream, for moisture removal as well as a true HEPA Filter (H14) located downstream. This unit has been designed for the recovery of metallic, conductive and explosive dusts into an immersion liquid bath such as water, parafin oil, mineral oil, etc. This unit renders any hazardous dust inert. This unit can be converted for the recovery of fuel, solvents and acids. The heavy duty powder coated Hydraulic Cart allows for the unit to be lifted up to 36" (91 cm) above the ground so that contents can be emptied into a recovery container for disposal.
High Efficiency Particulate Air Filter
A HEPA filter is a type of air filter, which means it filters the air coming in or out of the vacuum cleaner system. It can remove at least 99.99% of dust, pollen, mould, bacteria and any other airborn particles with a size of 0.3 micron or larger.
North-America: Each HEPA Filter has a minimum filtration efficiency of 99.99% on 0.3 micron. Tested as per IEST-RP-CC001.3 and OSHA compliant.
Europe: Each HEPA Filter has a minimum filtration efficiency of 99.995% on 0.3 micron, rated H14 as per EN 1822 by MPPS method.
Click here to download Tiger-Vac's HEPA Filter's standards chart.
Coalescing Filter Element
The Coalescing filter element is used for the removal of solid particles, water and oil aerosols.
Explosion Proof Requirement
In order for Tiger-Vac to legally certify an Explosion Proof/Dust Ignition Proof vacuum cleaner system the unit must be static dissipative (SD*) and conductive and have a resistivity measuring less than 10 Ohms to any point on the vacuum cleaner system. This makes the unit eligible to be Explosion Proof/Dust Ignition Proof and be part of Tiger-Vac's quality control management system ISO 9001:2008.
When using a pneumatic Explosion Proof Vacuum Cleaner System the customer must make sure that the source of air supply (compressor) is grounded.
Brochures & Certificates
| Name | Description | Download |
| SS-IT EX (HY-C) RE HEPA Brochure (Metric) | Technical data for SS-IT EX (HY-C) RE HEPA in metric units (Millimeters, Kilograms...) | Brochure Letter (8½" × 11") Brochure A4 (210mm × 297mm) |
| SS-IT EX (HY-C) RE HEPA Brochure (Imperial) | Technical data for SS-IT EX (HY-C) RE HEPA in imperial units (Inches, Pounds...) | Brochure Letter (8½" × 11") Brochure A4 (210mm × 297mm) |
| ATEX Self certified pneumatically (air) operated | Certification Document | download |
